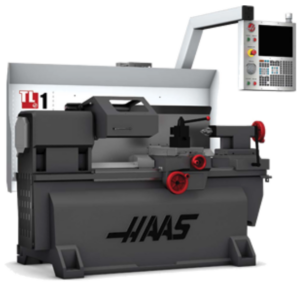

Haas TL-1 – CNC Toolroom Lathe
CNC Toolroom Lathe; 16″ x 30″ (406 x 762 mm) max capacity, chip enclosure, 20″ (508 mm) swing, 12 hp (8.9 kW) vector drive, 2000 rpm, A2-6 spindle, Intuitive Programming System, coolant pump, 1 MB program memory, memory lock keyswitch, air blow gun, 15″ color LCD monitor and USB port.
Specifications:
| SWING DIAMETER |
S.A.E.
|
METRIC
|
|---|---|---|
| Over Front Apron |
20 “
|
508 mm
|
| Over Cross Slide |
11 “
|
279 mm
|
| CAPACITIES |
S.A.E.
|
METRIC
|
| Chuck (optional) |
8 “
|
203 mm
|
| Max Cutting Diameter (varies with turret) |
16 “
|
406 mm
|
| Max Cutting Length (without workholding) |
30 “
|
762 mm
|
| Between Centers |
30 “
|
762 mm
|
| TRAVELS & FEEDRATES |
S.A.E.
|
METRIC
|
| X Axis |
8 “
|
203 mm
|
| Z Axis |
30 “
|
762 mm
|
| Rapids on X |
450 in/min
|
11.4 m/min
|
| Rapids on Z |
450 in/min
|
11.4 m/min
|
| Max Thrust X |
3894 lb
|
17 321 N
|
| Max Thrust Z |
1947 lb
|
8661 N
|
| SPINDLE |
S.A.E.
|
METRIC
|
| Max Rating |
12 hp
|
8.9 kW
|
| Max Speed |
2000 rpm
|
2000 rpm
|
| Max Torque |
108 ft-lb @ 355 rpm
|
146 Nm @ 355 rpm
|
| Spindle Nose |
A2-6
|
A2-6
|
| Spindle Bore ø |
3.00 “
|
76.2 mm
|
